RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Brand Name : RUIDA

Model Number : RDC6332G

Certification : CE FCC ROHS

Place of Origin : Mainland China

Price : Negotiable - Inquire Within

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : 240*160*120

MOQ : 50

Delivery Time : 5-8 work days

Supply Ability : 100 sets/day

Axis : 3

Laser source : CO2 glass tube, CO2 RF tube and UV lasers

Laser channel : 2

Communication : Ethernet, USB and WIFI (optional)

Installment encryption : Support

Feeding : Z axis feeding, sheet feeding

Rotary : Y axes rotation

Panel : 3.5''color screen + keys, Linux operating system

Onboard clock : Support

Software : RDWorksV8, plug-in software RDPlug, virtual printing and RDImage

Contact Now

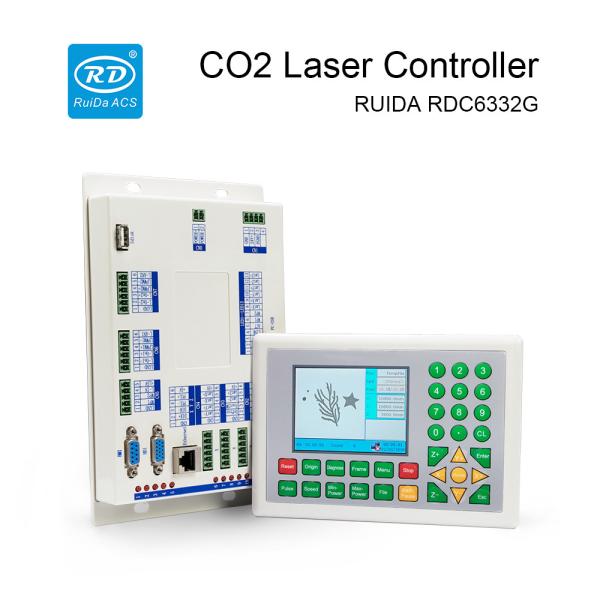

RUIDA RDC6332G CO2 Laser Controller For CO2 Laser Cutting And Engraving Machine

Discroption of RDC6332G:

The RDC6332G system is the latest generation of laser engraving / cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and static electricity. The human-machine operating system based on LINUX has a more friendly operation interface and more powerful functions. This controller has better motion control functions, large file storage, dual channel adjustable digital / analog laser power control interface, more compatible U flash disk driver and multi-channel general/ special IO control. It integrates special time system and supports the Ethernet and USB communication with PC and hardware encryption algorithm.

Function description:

1.Standalone operation, 256M memory on board.
2.Support USB and Ethernet communication and U flash disk.
3.Independent color operation panel. Support push-button operation and touch screen.
4.Worked with independent application software RDWorksV8; support plug-in software and virtual printing.
5.Three motion axes and rich laser interfaces.
6.Rich external auxiliary accessories are optional.

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Software RDworks V8(Free)

Support PLT,DXF,AI,DST and other file formats import,display and edit functions,support image file import and processing.

RUIDA RDC6332G CO2 Laser Control Panel , Laser Engraver And Cutter Controller

Technical Parameters:

Parameters RDC6332G
Laser source CO2 glass tube, CO2 RF tube and UV lasers
Axis 3
Laser channel 2
Communication Ethernet, USB and WIFI (optional)
Panel 3.5” color screen + keys,Linux operating system
Feeding Z axis feeding, sheet feeding
Installment encryption Support
Onboard clock Support
Firmware Remote upgrade of pannel and mainboard program
Rotary processing Y axis rotation
Engraving function Plane engraving, slope engraving and gray engraving
Resume processing after power failure Support
Software RDWorksV8, plug-in software RDPlug, virtual printing and RDImage
Operating system WinXP,Win7,Win8,Win10,32-bit or 64-bit
Language 11 languages Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean and Italian
Size Panel: L170mm*W120mm*H38.6mm
Mainboard: L220.5mm*W134mm*H29.6mm
Accessories Wireless handle box, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.
